H.264/AVC Baseline Profile Encoder/Decoder for DRP

Product Overview

TMC has developed and commercialized an original IP for a low-CPU-load H.264/AVC encoder/decoder by hybrid processing of DRP and CPU, which are installed in RZ/A2M.
This software is H.264/AVC (a highly efficient image compression standard standardized in ISO/IEC 14496-10) compliant, so there is no need to concern about compatibility like with proprietary standards.

Features

[Decoder]

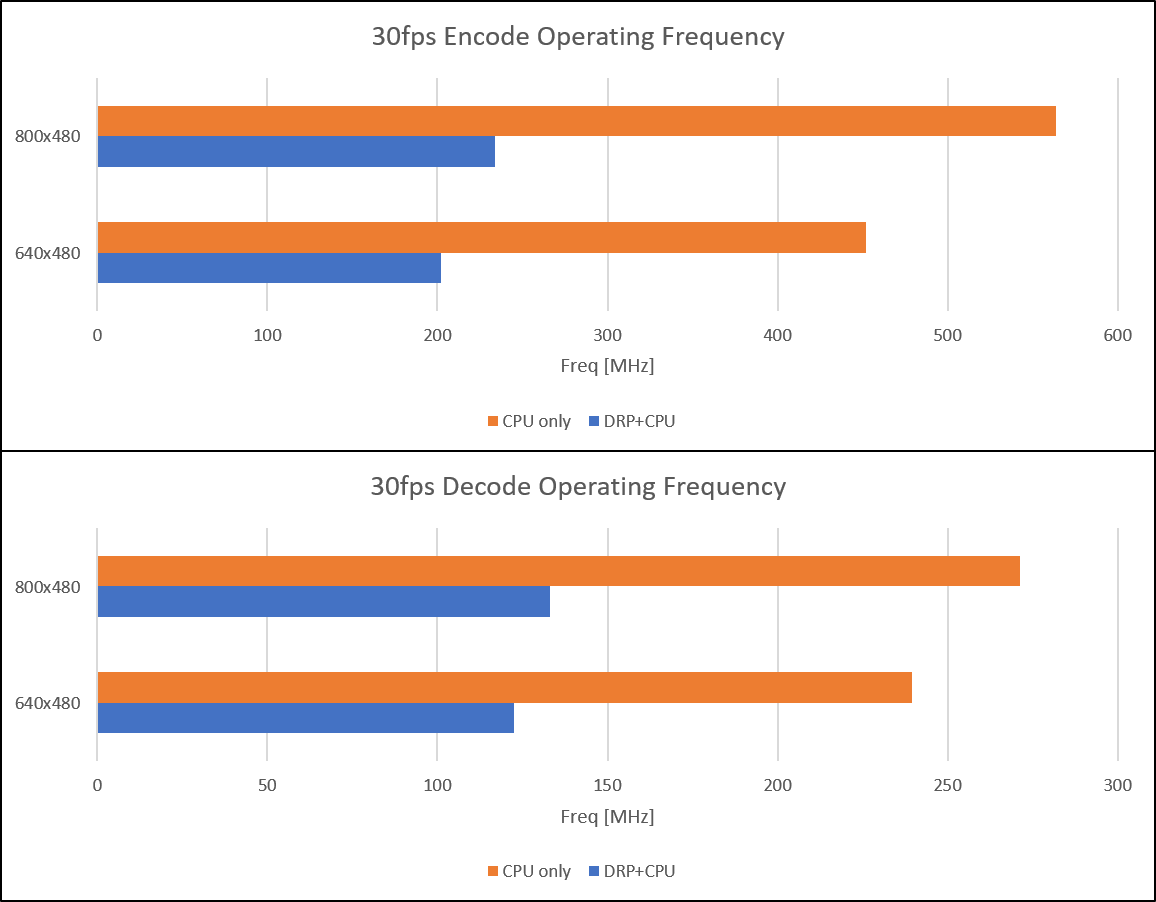

WVGA 30fps decoding is achieved by Cortex-A9 with 50% CPU load.
The decoded image is output in YCbCr4:2:2 format, allowing LCD output without format conversion.

[Encoder]

WVGA 30fps encoding is achieved by Cortex-A9 with less than 40% CPU load。
By using the MIPI camera which supports YCbCr4:2:2 format, it is possible to encode without format conversion.

Specification

Compression Format	Annex.B Byte stream format
Image Format	YCbCr 4:2:2 CbYCrY Packed format
Resolution	320 x 240 to 800 x 480

This IP supports both color spaces of YCbCr and YUV.
